My Shabbihaus eco retrofit project part 3 ventilation & bathroom

The other work I did at this time was in the bathroom, not really energy efficient specifically but we re-used the bath, just changing the handles. The sink was reclaimed from another site and we re-used wood from elsewhere in the house. I also looked at improving the ventilation and added a larger inline fan in a kitchen cupboard. This was set to overrun by 20 minutes and helped reduce humidity in the house, more on that in a bit.

After this point we had a new kitchen and bathroom so the opportunities for add on work were limited. Over the next few years the family got a bit bigger and problems with humidity began to increase in the bedrooms. Then, earlier this year the housing association who own the freehold for the property finally got their act together and decided they would replace the windows. I wanted new wooden ones but the majority won out and we got cheaper plastic ones. They seemed to think this would stop condensation but I realised that this will just condense elsewhere if we don’t remove it. I am also concerned about air quality as we are quite near the centre of town and pollution levels are high. So I did some investigation and formulated a plan to coincide with the window works that would deal with humidity and provide plenty of fresh, clean air in the flat.

I initially looked at mechanical ventilation with heat recovery, these systems are either too big or too noisy to install in a small flat and the filters don’t cover as many pollutants as I would like, a NOx filter is even bigger so even less likely to happen. I was still keen on using a bigger fan to ensure extraction from a central bathroom with a fairly long (3m) duct to the outside. Through some work I am doing with the GLA I came across the Aereco system which has a single fan and then extracts in the bathroom and the kitchen.

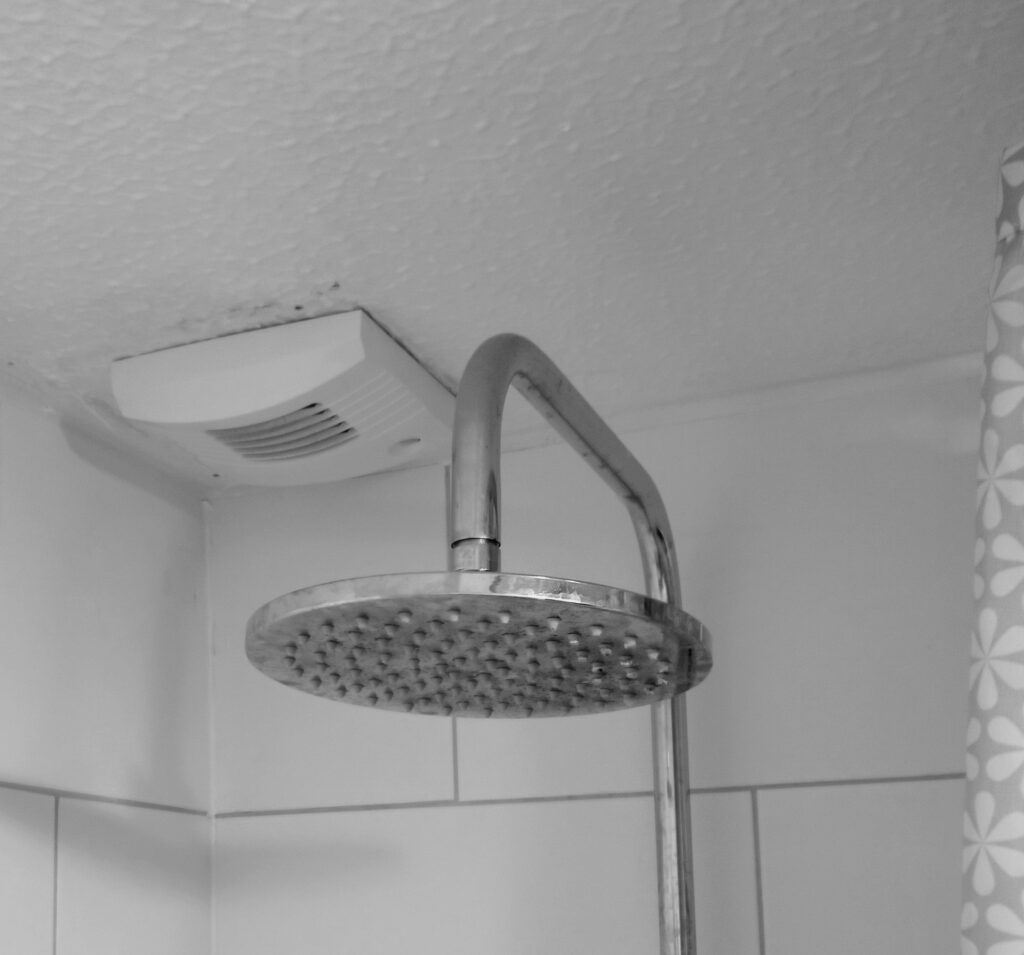

Aereco fan in ceiling

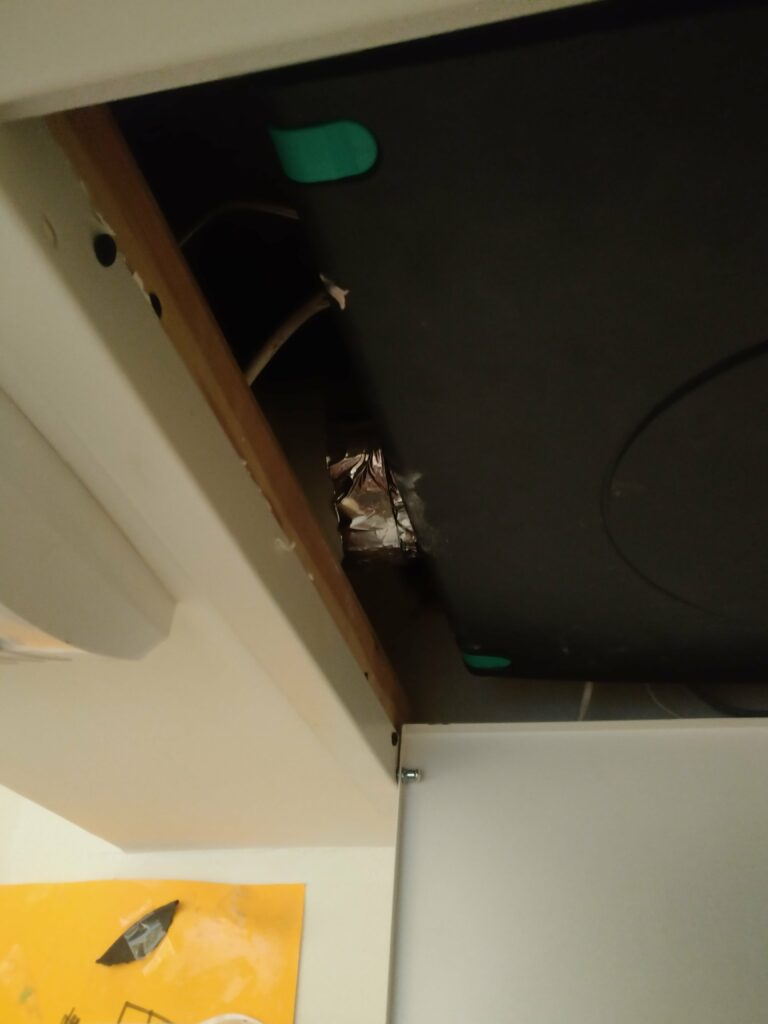

Boxed in behind an access panel

This extraction draws air in from the other drier rooms in the flat, I put a small vent in each door to allow the air to come through even when the doors are shut. Each room has a humidity controlled trickle vent on one window, this opens wider as the humidity in the room increases to allow more fresh air in. As there is quite a lot of traffic round us I also chose acoustic trickle vents which are larger. They work well but I probably wouldn’t bother if I did it again, I miss the sirens.

So I am drawing in dry air from outside, this might be a bit colder but heating dry air is a lot easier than heating wet air so there shouldn’t be an increase in costs. The fan runs all the time at a low speed so again uses very little energy, probably less than £20 a year. It’s also much quieter than my previous fan, I can’t actually hear it in the kitchen where it is located, the bathroom has a small noise because the intake is so close to the fan but still nothing compared to a normal bathroom fan.

So the ventilation has been in for a few months now and it does already feel fresher. The true test will be this winter but towels in the bathroom are drier and the summer heat is a little less stifling with the air flow through the rooms. When we installed we got the following extraction rates for the system. This meant at best we would achieve 14.8 l/s, which is above the minimum rates in Part F, but below what Vince from Aereco thinks the performance of the system should be.

After some investigation we changed the louvred grill on the outside to a better one and there was a massive increase of 12+pa at each extract grille. I’ve shown the rates below at 45pa. You can see that there is a performance increase of 2l/s just by changing the Louvre Grille outside.

Finally Vince provided me with the minimum extract rate for the grille as well. This is where our system can provide energy savings as when there is no moisture detected, it can drop to a very low extract rate, way below minimum regulations – Shown here at 4.8l/s.

So we are now halfway through winter and it is all looking good, no condensation that we have found and the towels in the bathroom are drying overnight. Cooking smells are also gone very quickly from the flat and no new mould is growing on the silicon round the bath. In the summer it was a little bit fresher overnight as well, no maintenance needed except washing the covers for the extract grill. No noticeable difference in our electricity use, when we turned the fridge, router etc off the energy usage was so low our monitor registered at 0p per hour.

The only drawback so far is that the plants are drying out, we never used to have to water the plants in the bathroom and now we have killed one of them and only just rescued the other!

Showing the snake plant that used to take moisture from the air
Air cleaning snake plants
