My Shabbihaus eco retrofit project part 4 living wall insulation

Dry air in the house is a good achievement but I have also been worrying about the pollution levels. Two of the three air intakes are located above the back garden and the front one has some good tree coverage between it and the road but it is still a busy traffic area. This made me look at some alternative ways of cleaning the air, I did some googling and came across the NASA research project on houseplants and their impact on air quality. Now before I go any further I do realise that these were controlled tests and we would also need a very large number of plants to get a big impact but I figure it can’t hurt and what I made looks great.

I have been keen to do something with reclaimed wood and also to add some extra insulation to the flank wall in the kids bedroom so I got a bit carried away here and produced this wall made from old pallets with 50mm of woodfibre insulation behind it. I was a bit nervous about this project as it has a bit more of a design impact than some of the other projects, it’s been in a while now though and I am so pleased with the outcome visually.

The first thing we did was tour the streets collecting abandoned pallets. I found that ones that were slightly broken already were better as they are easier to dismantle than really well built ones. The kids really enjoyed the collection process and I also got them to stain some of the planks we extracted to add some variety to the wall.

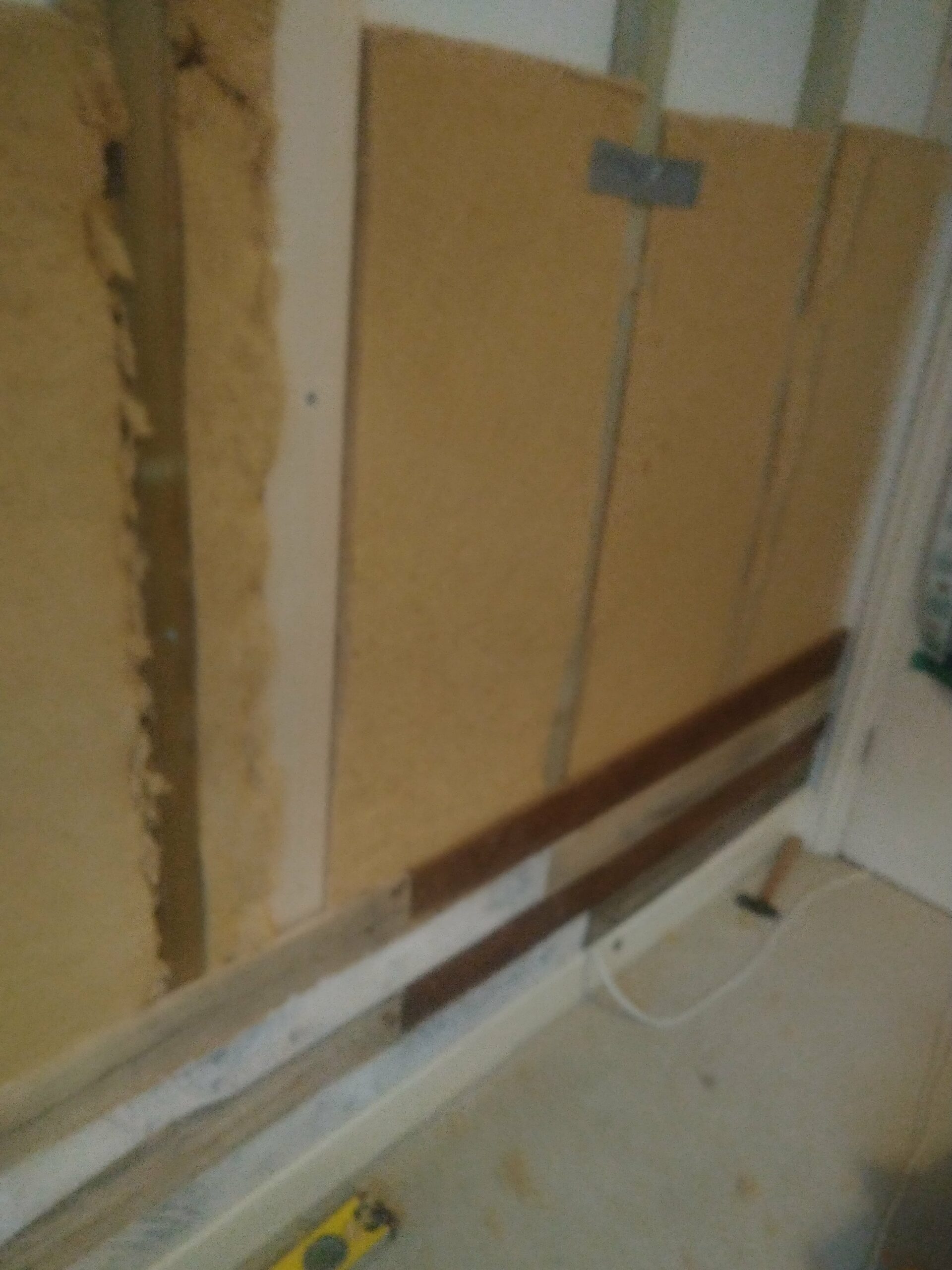

Next step was to get hold of some wood fibre insulation, not so easy for small quantities but thanks to https://phstore.co.uk/ for arranging it for me, delivery costs almost the same as the insulation in small quantities but cheaper than elsewhere and charming service too. I then fixed some 50mm battens to the wall at 600mm and push fitted the insulation between.

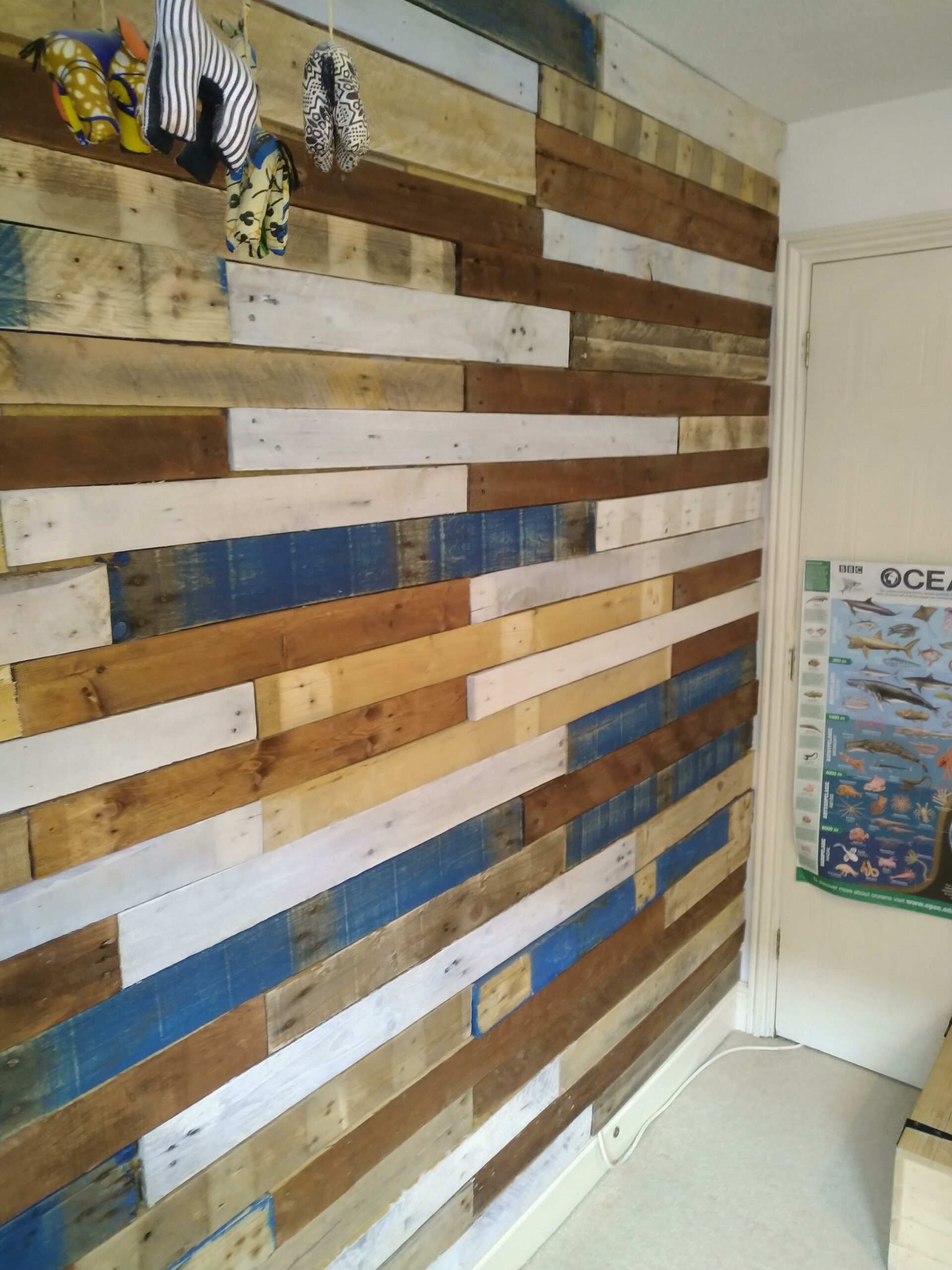

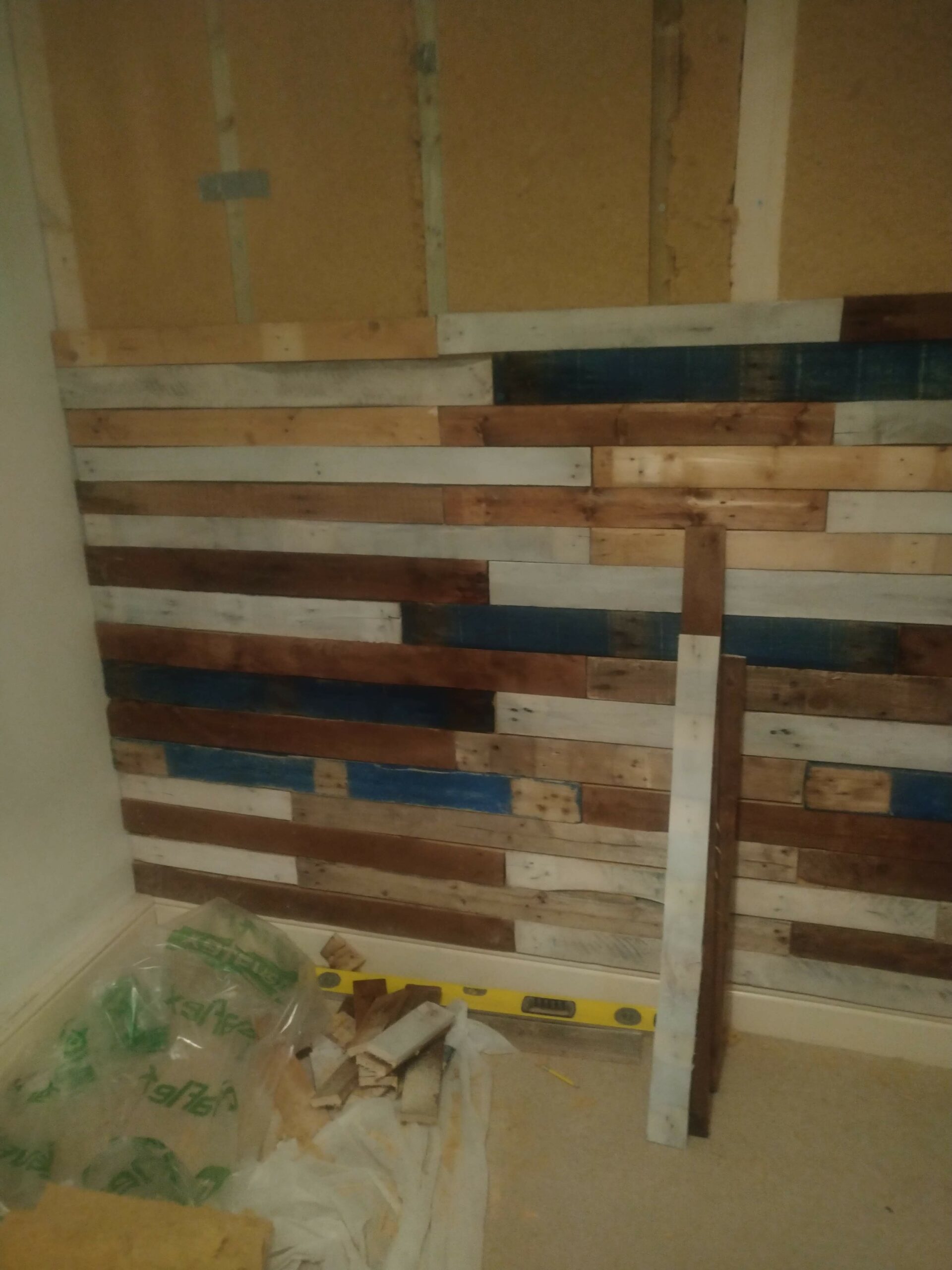

The next bit involved a nail gun so was great fun managed to charm the lady at Travis Perkins into giving me a discount and I was off. I fixed them in an offset pattern and tried to group similar widths of board together so it wasn’t too bumpy.

Then we had to make shelves for the plants to grow on. I used the ‘dice’ from the pallets (technical term for the square bits that go in between the pallets) screwed into the wall to support shelves made from more pallet boards. These dice are pretty tough and tricky to drill through, one of them still has half a drill bit in it where it snapped.

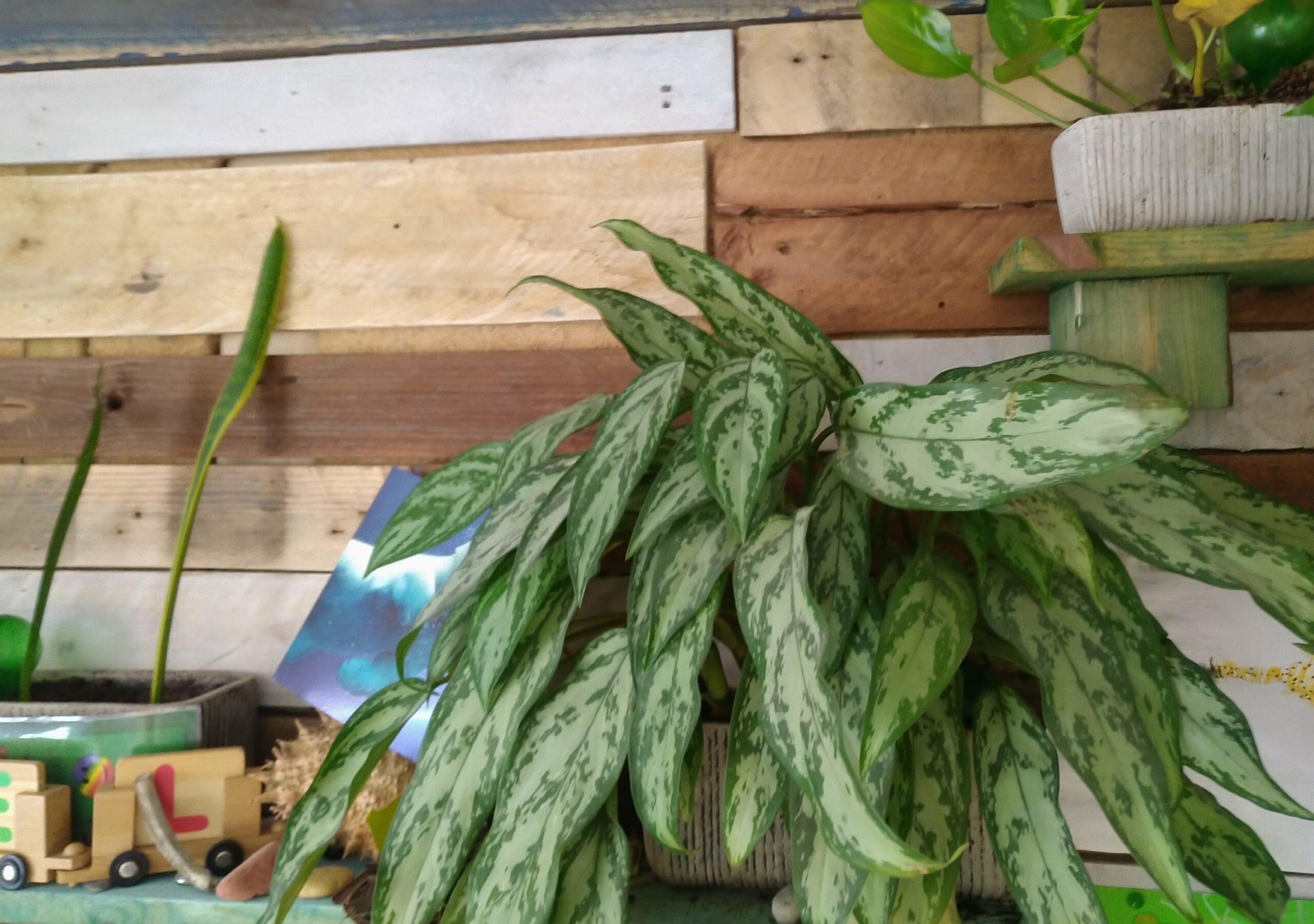

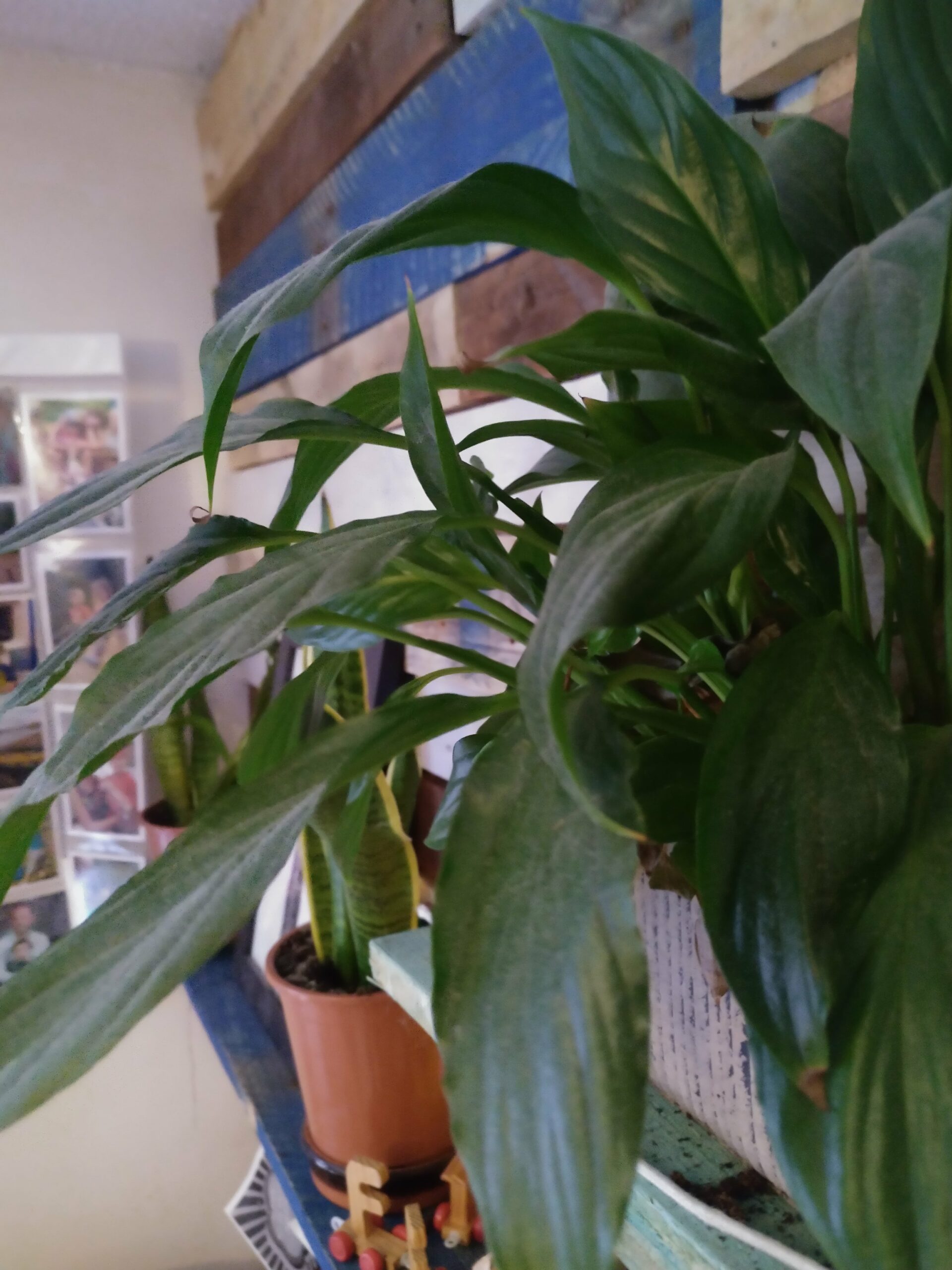

Once it was all up we put in the plants, I used Chinese evergreen, peace lily, some snake plants and a cutting from an old spider plant. I also put in a watering system! Well, I bought some globes that you fill up and they drip out over a couple of weeks, they are a bit inconsistent but a lot cheaper than some automated system. I top them up with waste water from kids water bottles and they are still growing nearly a year later.
